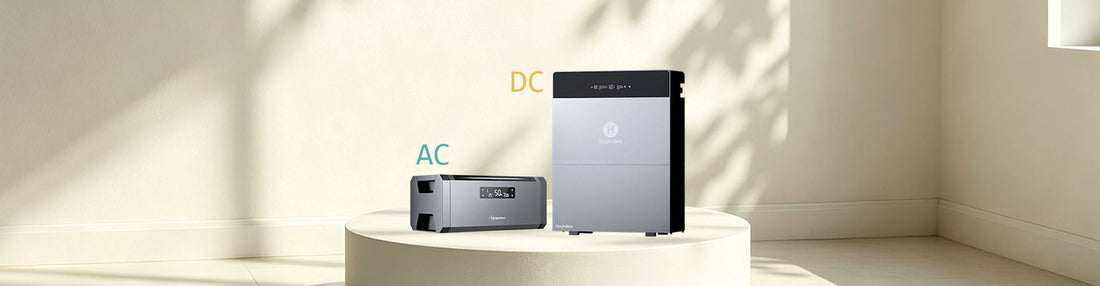

AC or DC Solar Battery: Which Type Do You Need?
As solar energy becomes more popular for homes, many people are exploring battery storage systems to maximize their energy independence. But once you begin researching solar batteries, you’ll quickly encounter two major options: AC-coupled batteries and DC-coupled batteries.
So, which one is right for your solar setup? The answer depends on your current system, energy goals, budget, and future expansion plans. In this blog, we’ll guide you with the differences between AC and DC solar batteries in simple terms so you can confidently choose the best solution for your needs.
Understanding Solar Battery Basics
Solar panels generate electricity in the form of direct current (DC) power. However, most homes and appliances use alternating current (AC) power.
Because of this, solar systems require an inverter to convert electricity into usable energy. The way your battery connects to this process determines whether it is considered an AC battery system or a DC battery system.
What Is a DC-Coupled Solar Battery?
A DC-coupled system stores electricity directly from your solar panels before it is converted into AC power, helping reduce energy loss and improve overall efficiency.
A DC-coupled solar battery works in the following steps:
1. Solar panels generate DC electricity.
2. The generated power is first converted to AC electricity to meet your home’s immediate energy needs.
3. Any excess DC electricity is stored directly in the battery for later use.
4. When needed, a hybrid inverter converts the stored energy into AC power to supply your home.

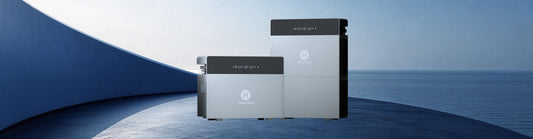

Related products: HiBattery 1920 AC, HiBattery 4020 AC
Advantages of DC Batteries
1. Higher Efficiency
Because electricity only needs to be converted once, DC systems typically lose less energy during the conversion process.
2. Better for New Solar Installations
If you’re installing solar panels and batteries together from the beginning, DC coupling is often more cost-effective and streamlined.
3. Faster Charging
DC systems can charge batteries more efficiently during peak sunlight hours.
4. Ideal for Off-Grid Systems
Many off-grid solar setups use DC-coupled batteries because they simplify energy storage and maximize efficiency.
Disadvantages of DC Batteries
1. More Complex Installation
Adding a DC battery to an existing solar system can require replacing your inverter with a hybrid inverter.
2. Limited Retrofit Flexibility
Homeowners with older solar systems may face higher upgrade costs.
What Is an AC-Coupled Solar Battery?
An AC-coupled system stores electricity after it has been converted into AC power, making it a flexible option for homes with existing solar systems.
An AC-coupled solar battery works in the following steps:
1. Solar panels generate DC electricity.
2. A solar inverter converts the DC electricity into AC power for your home’s immediate energy use.
3. Any excess AC electricity is sent to the battery system for storage.
4. Inside the battery, the electricity is converted back into DC power for storage, then converted to AC again when your home needs it later.
Advantages of AC Batteries
1. Easier to Add to Existing Solar Systems
AC-coupled batteries are ideal for retrofitting battery storage onto homes that already have solar panels installed.
2. Flexible Expansion
You can often add additional batteries more easily in the future.
3. Independent Operation
The solar inverter and battery inverter operate separately, which can simplify upgrades and maintenance.
Disadvantages of AC Batteries
1. Slightly Lower Efficiency
Because electricity undergoes multiple conversions between AC and DC, some energy is lost during the process.
2. Higher Equipment Costs
AC systems may require additional hardware and inverters.
Which Solar Battery Type Do You Need?
Choose DC Batteries If:
● You are installing a brand-new solar system
● You want maximum efficiency
● You plan to live off-grid or reduce grid dependence significantly
● You prefer an integrated all-in-one setup
DC-coupled systems are often the preferred choice for homeowners designing a solar-plus-storage system from scratch.
Choose AC Batteries If:
● You already have solar panels installed
● You want to add battery storage without replacing your current inverter
● You value flexibility and easier future expansion
● You want a simpler retrofit solution
AC-coupled systems are commonly chosen by homeowners upgrading existing solar systems.
What About Backup Power?
Both AC and DC battery systems can provide backup power during outages if properly configured. However, some systems are better suited for whole-home backup, while others only support essential appliances. When selecting a battery, it’s important to consider:
● Battery capacity
● Power output
● Backup duration
● Critical load support
● Local grid regulations
Cost Considerations
The total cost of a solar battery system depends on battery size, inverter requirements, installation complexity, labor costs, backup power features.
In general, DC systems may cost less for brand-new installations. AC systems may save money when upgrading existing solar setups. While upfront pricing matters, long-term efficiency and future flexibility should also influence your decision.
Final Thoughts
There is no universal “best” solar battery, but only the best option for your specific energy setup. If you’re building a new solar energy system and want the highest efficiency possible, a DC-coupled battery system may be the ideal solution. If you already have solar panels installed and want an easier upgrade path, an AC-coupled battery is often the smarter and more practical choice.
Before making a decision, it’s always wise to consult with a qualified solar installer who can evaluate your home’s energy needs, solar production, and long-term goals. The right battery system can help you reduce electricity bills, improve energy independence, and provide peace of mind during power outages for years to come.
