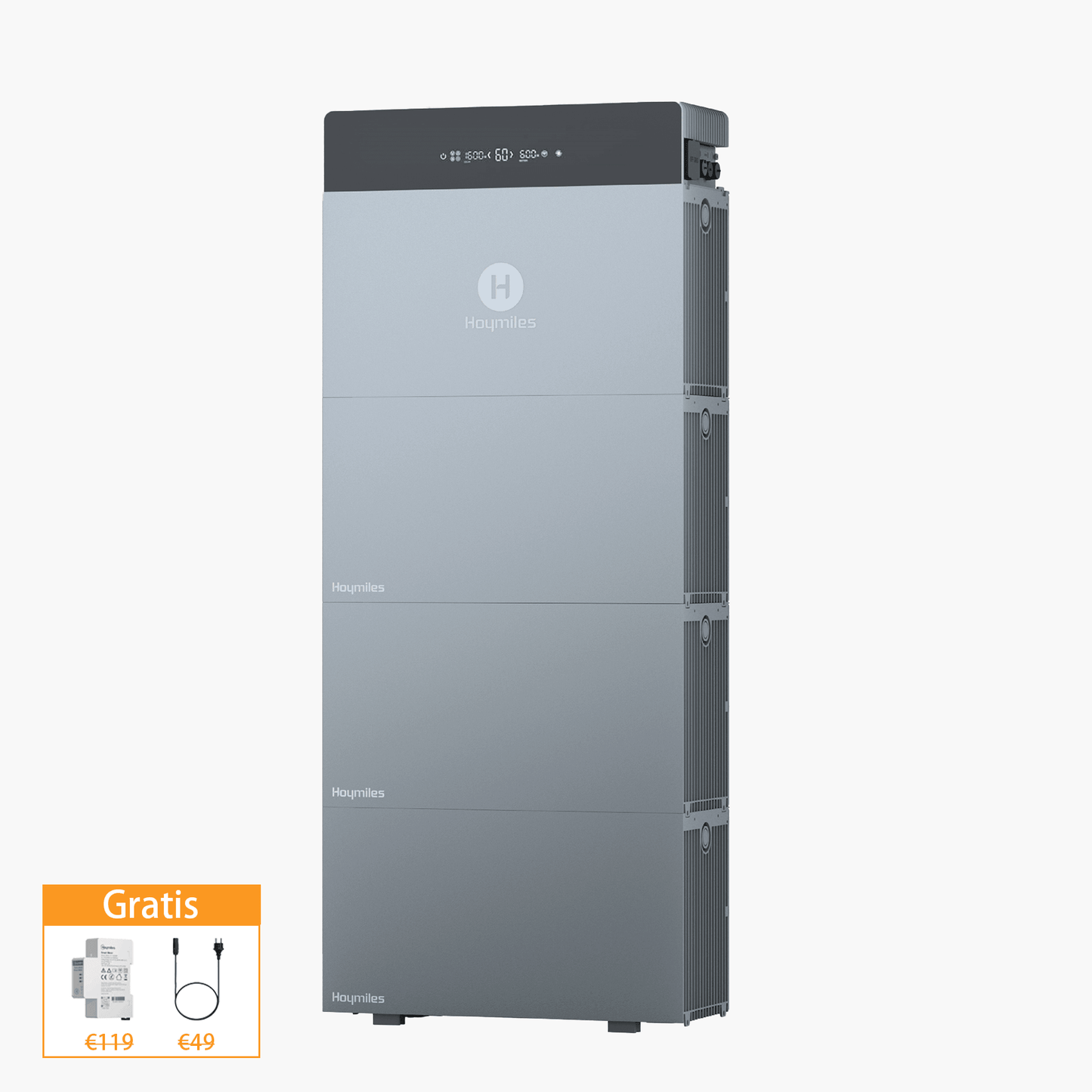

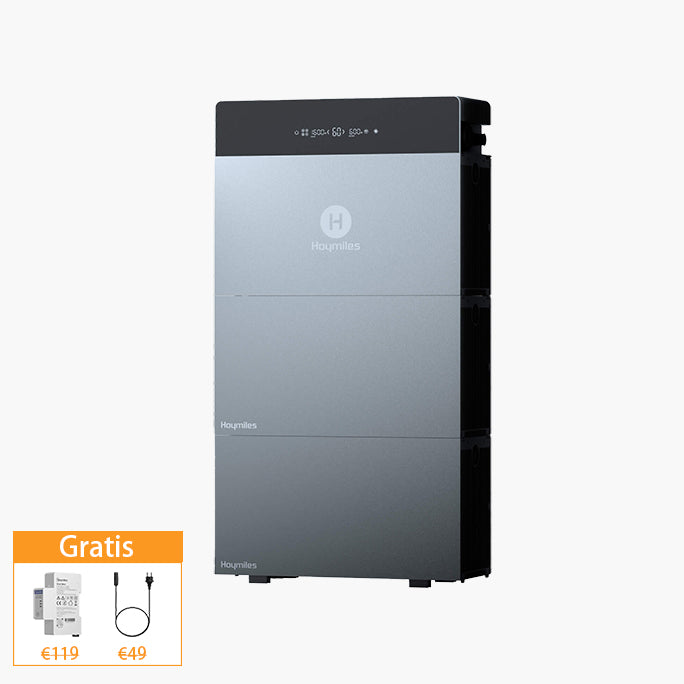

HiBattery 4020 X Solar Battery
HiBattery 4020 X Solar Battery
Get Extra 10% Off with Code: HBNEW
0% VAT in Germany only. For other countries, please check VAT Rate by Country
4020 X and 4020 AC will be shipped within 1–3 business days. Battery modules are expected to ship starting September 18.
Features at a Glance
Features at a Glance
Plug-and-play design
4.02kWh capacity, up to 16.08kWh
10-year quality warranty
Max. 2500W output power
Max. 4000W PV Input (4 MPPT)
AI smart TOU mode
Couldn't load pickup availability
Feature Highlights

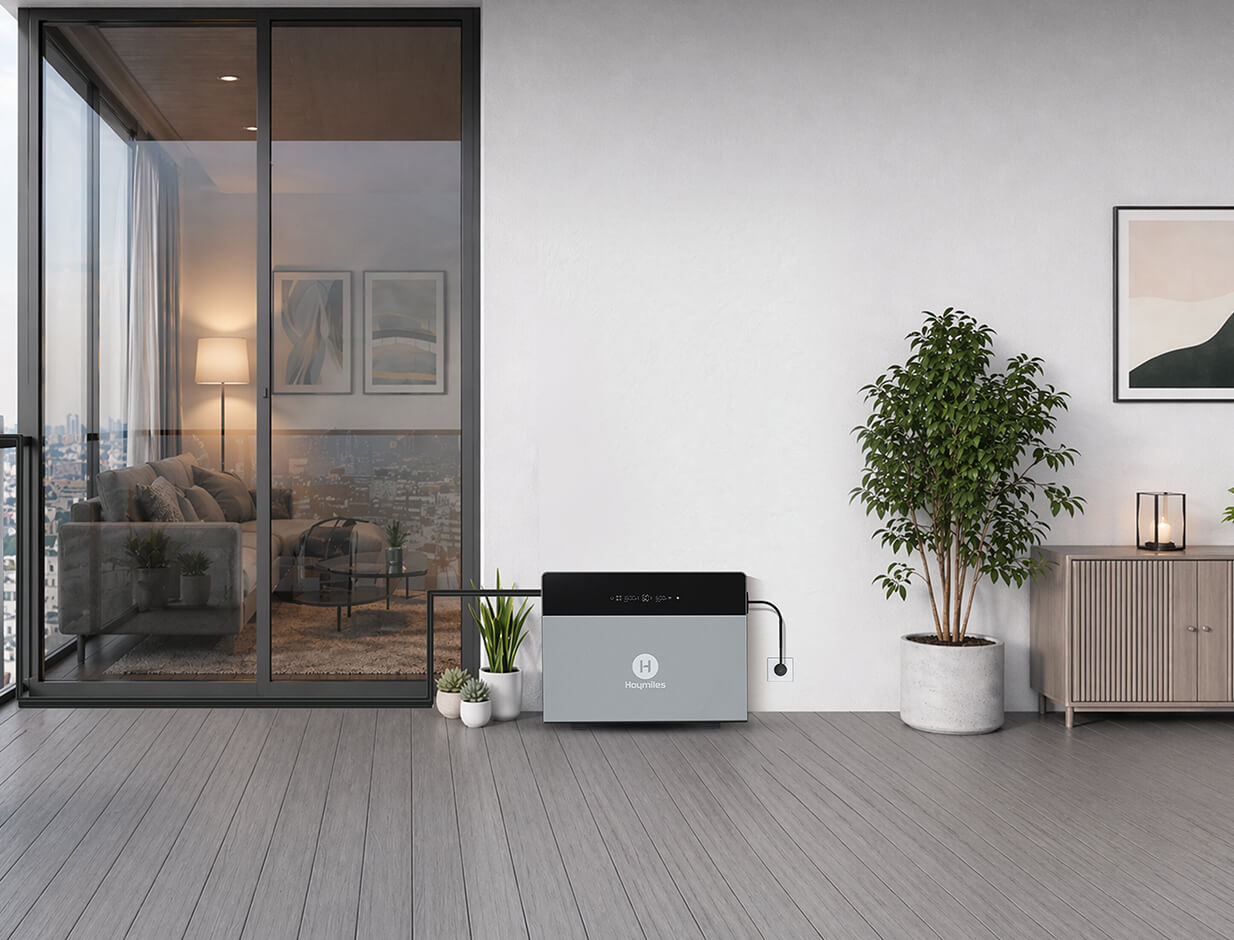

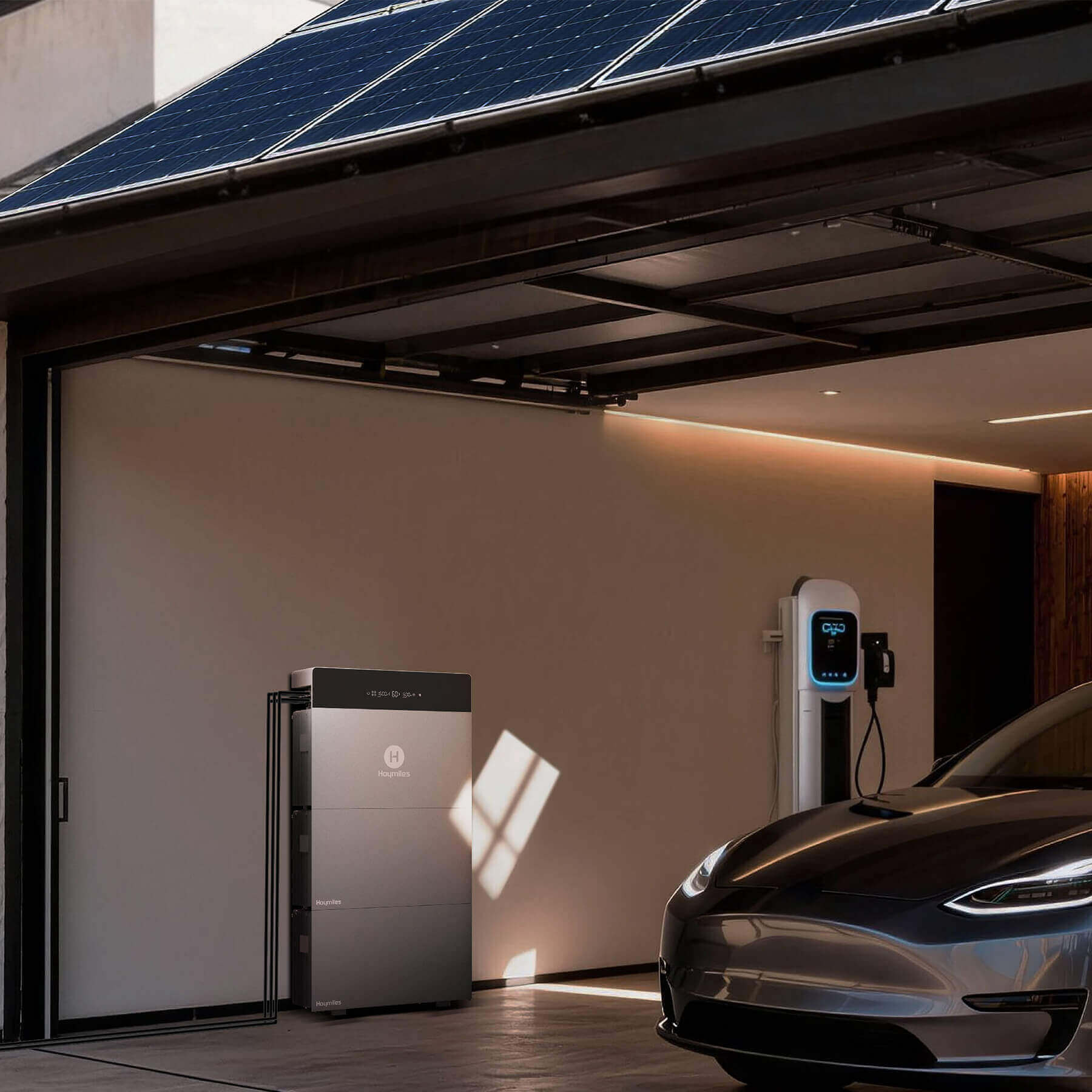

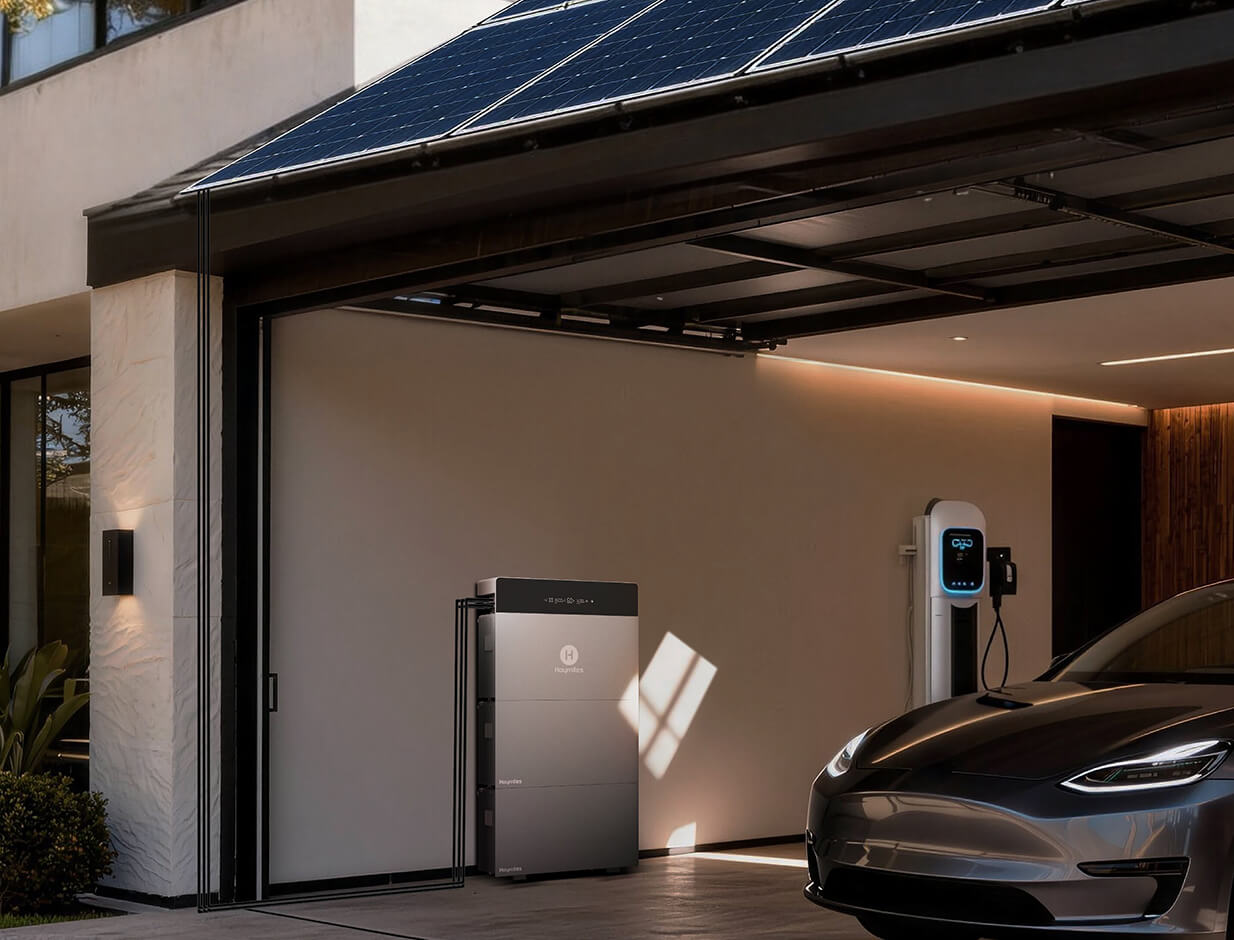

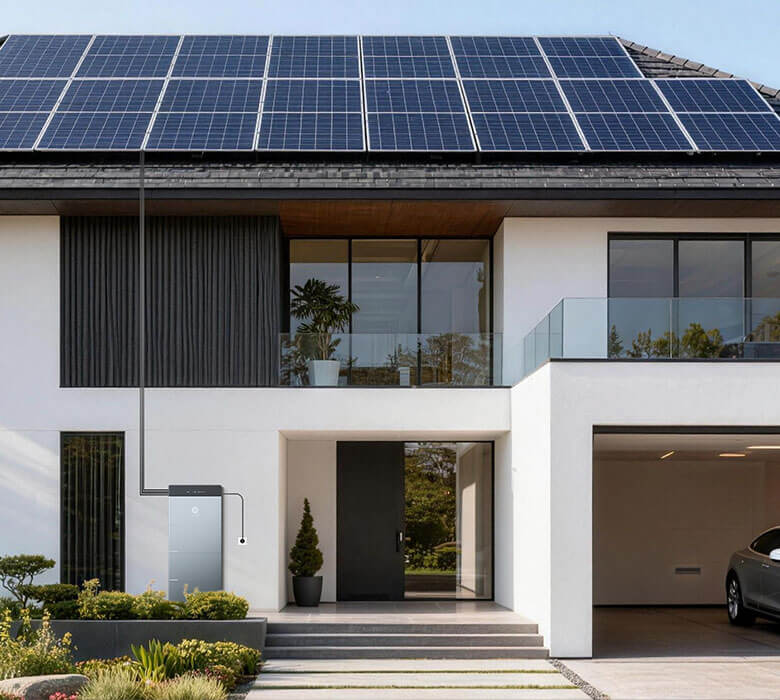

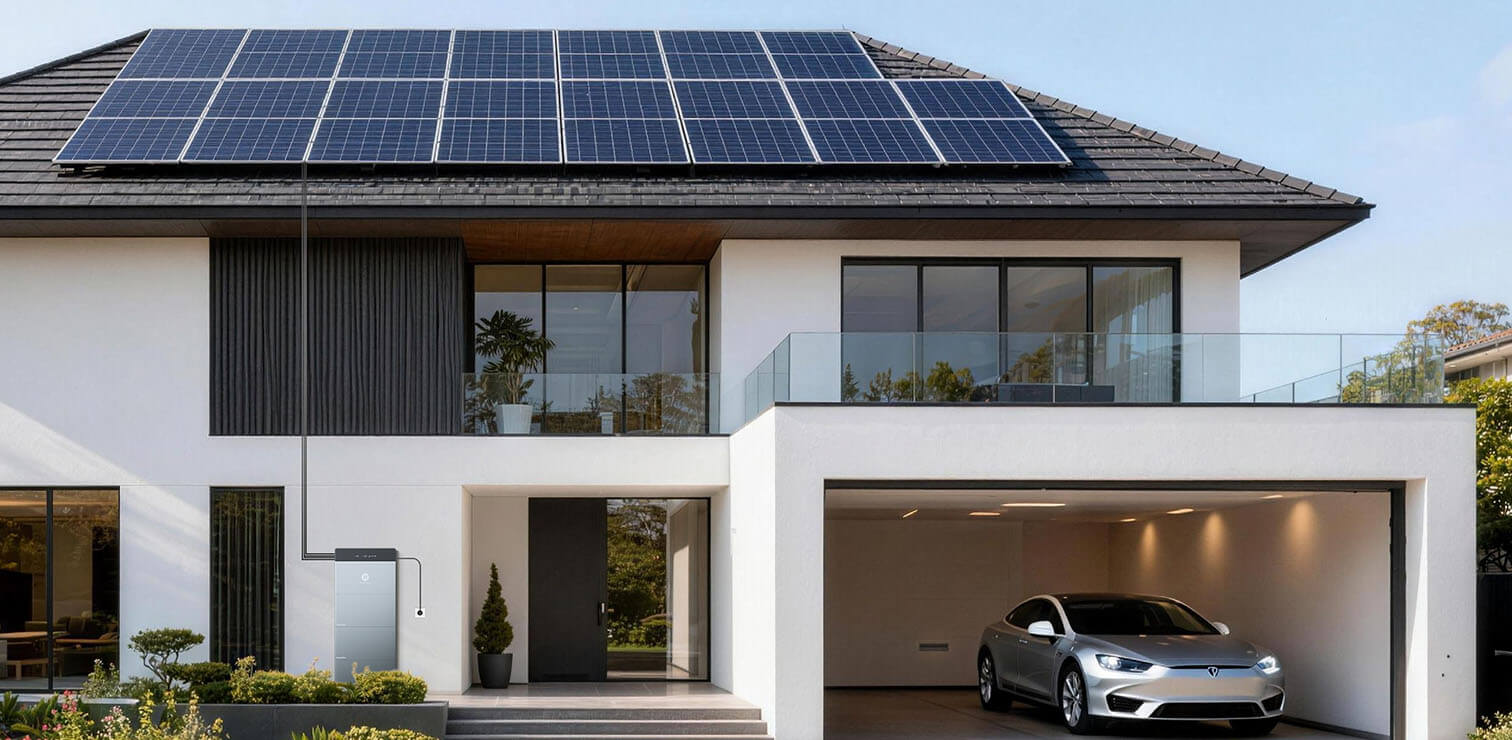

Easy Solar Energy Storage for Every Home
1*HiBattery 4020 X
For Normal Solar System (4*500W Panels)
Ideal for studio flats or 1–2 person households. Powers essential devices overnight.
battery capacity
Annual Generation
max. annual savings
Annual Usage

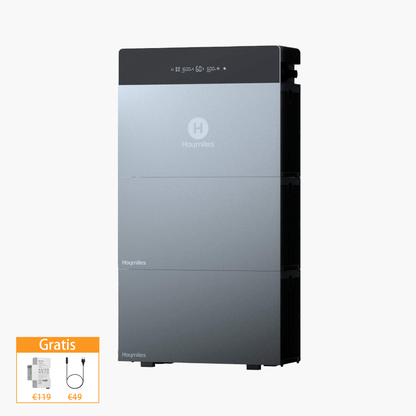

1*HiBattery 4020 X + 2~3*Battery Modules
For Premium Solar System (8*500W Panels)
Ideal for families of 3–4 in a semi-detached or larger home.
battery capacity
Annual Generation
max. annual savings
Annual Usage
With a 4020 X unit and 4×500W PV modules, it generates ~2,378 kWh/year (≈5.96 kWh/day). Up to 30% is used directly and up to 90% self-consumption is achieved, saving about €856/year at €0.40/kWh.
*Estimated savings are for reference only. Actual results may vary based on electricity rates, usage patterns and local policies.
Reliable Performance, Built to Last
Hoymiles AI-EMS for Extra 15% Revenue Boost
Hoymiles AI-EMS is a smart energy management system that optimizes solar generation, storage, and usage in real time. Using AI-driven TOU optimization and load shifting, it maximizes self-consumption and energy value. This helps improve system efficiency and can deliver up to a 15% revenue boost by using energy at the most valuable times.
HiBattery 4020 X
Multiple Systems for Ultimate Safety

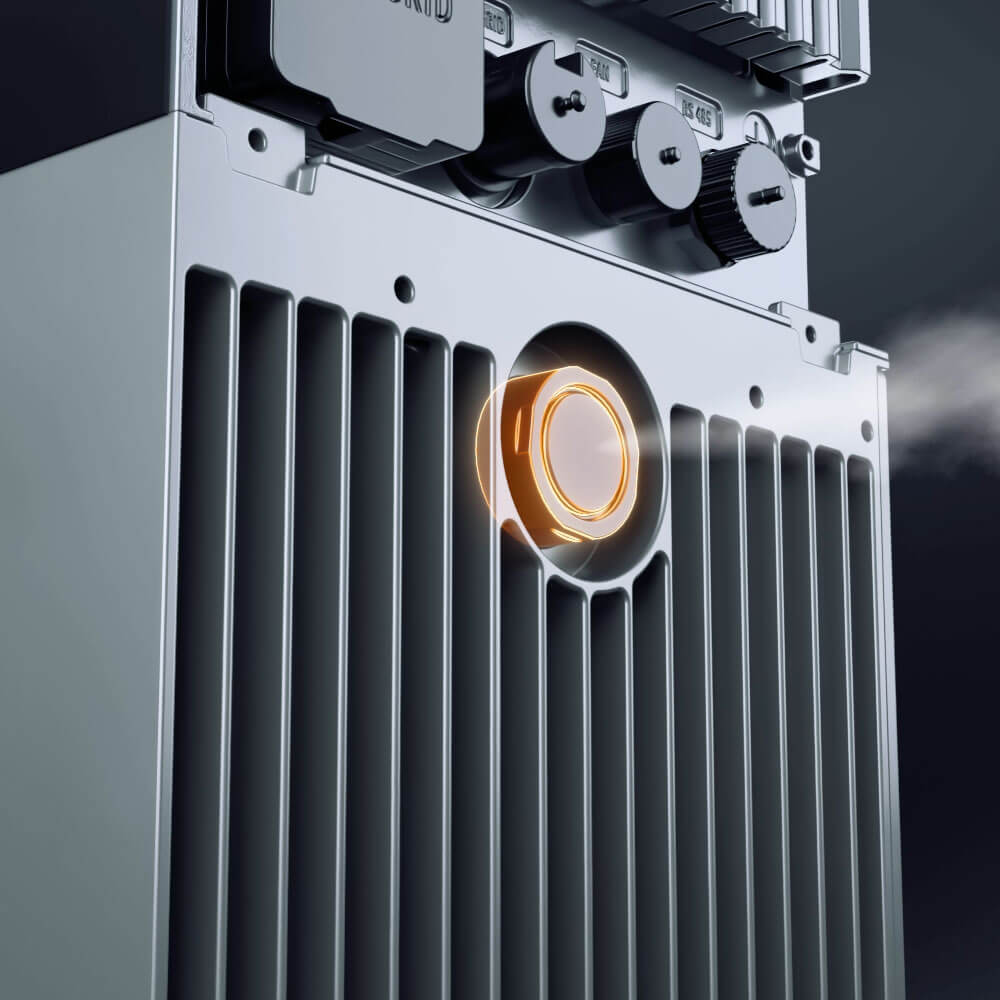

Built on a Dual-MCU architecture with an independent bidirectional DC/DC module, HiBattery 4020 X provides intelligent monitoring and 48 layers of electrical protection for voltage, current, and temperature. An integrated fire extinguisher and pressure relief valve enhance safety, while automatic SOC balancing simplifies battery replacement and expansion, reducing both setup time and costs.
HiBattery 4020 X

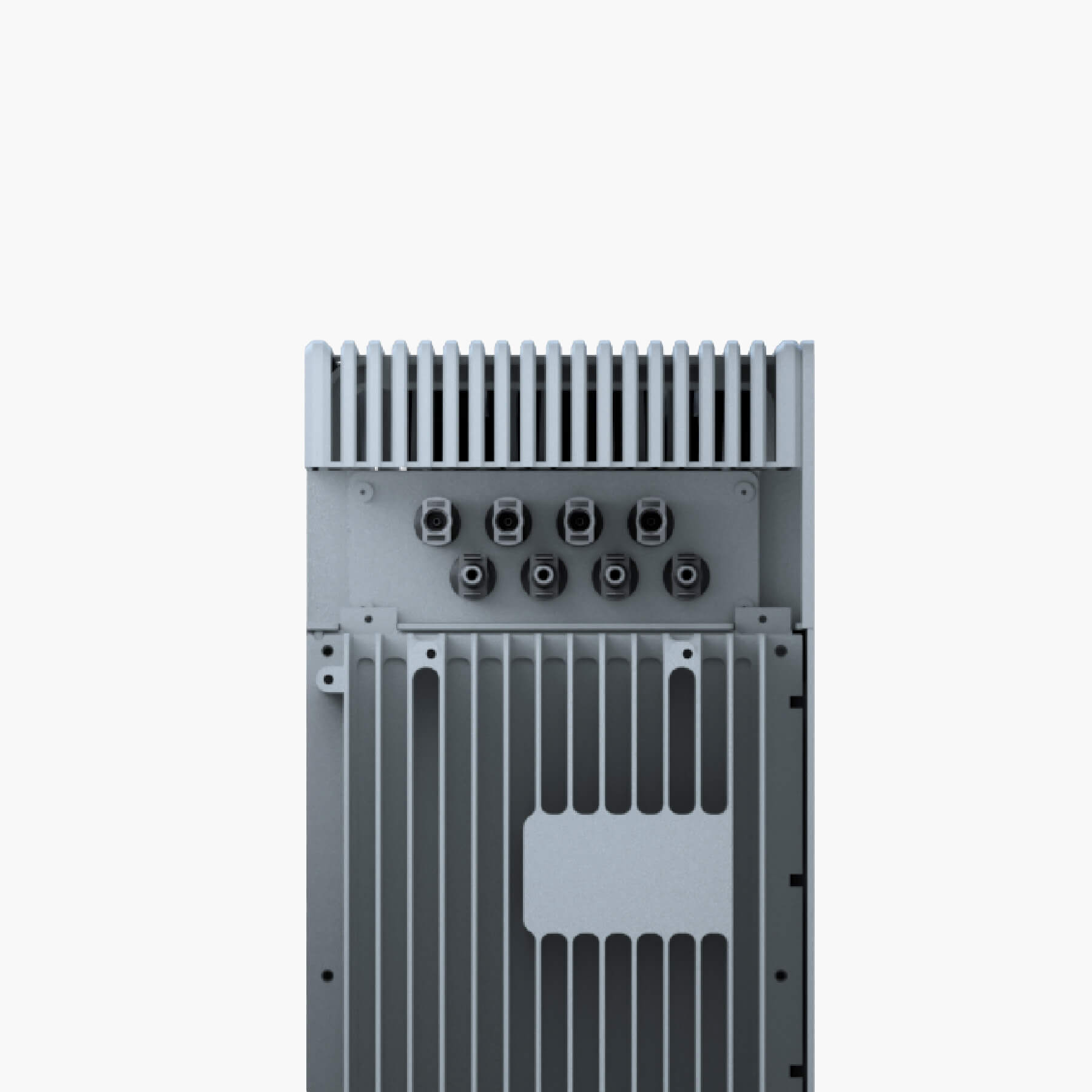

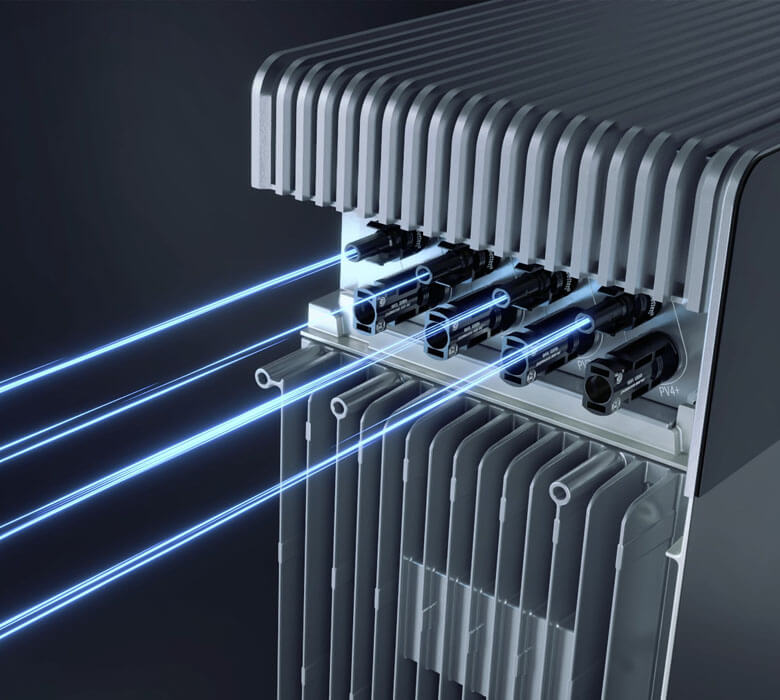

4000W Solar Input Power

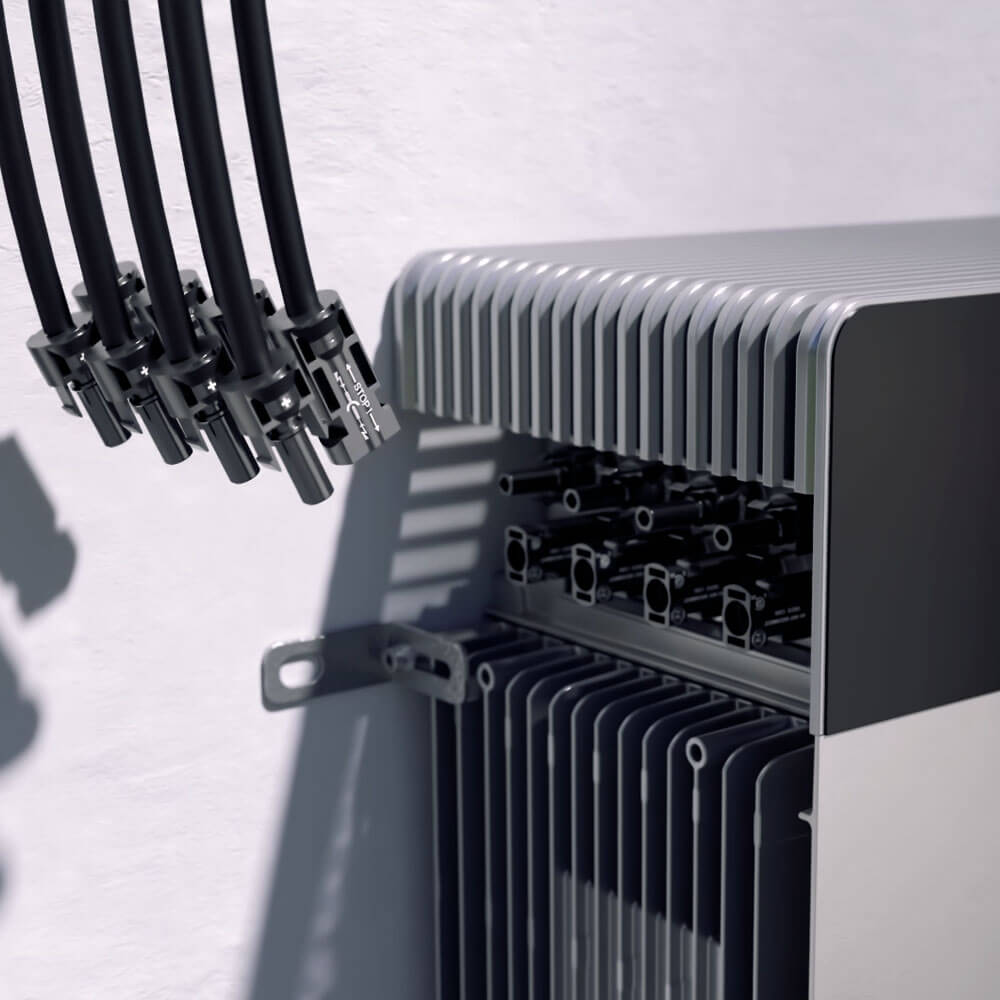

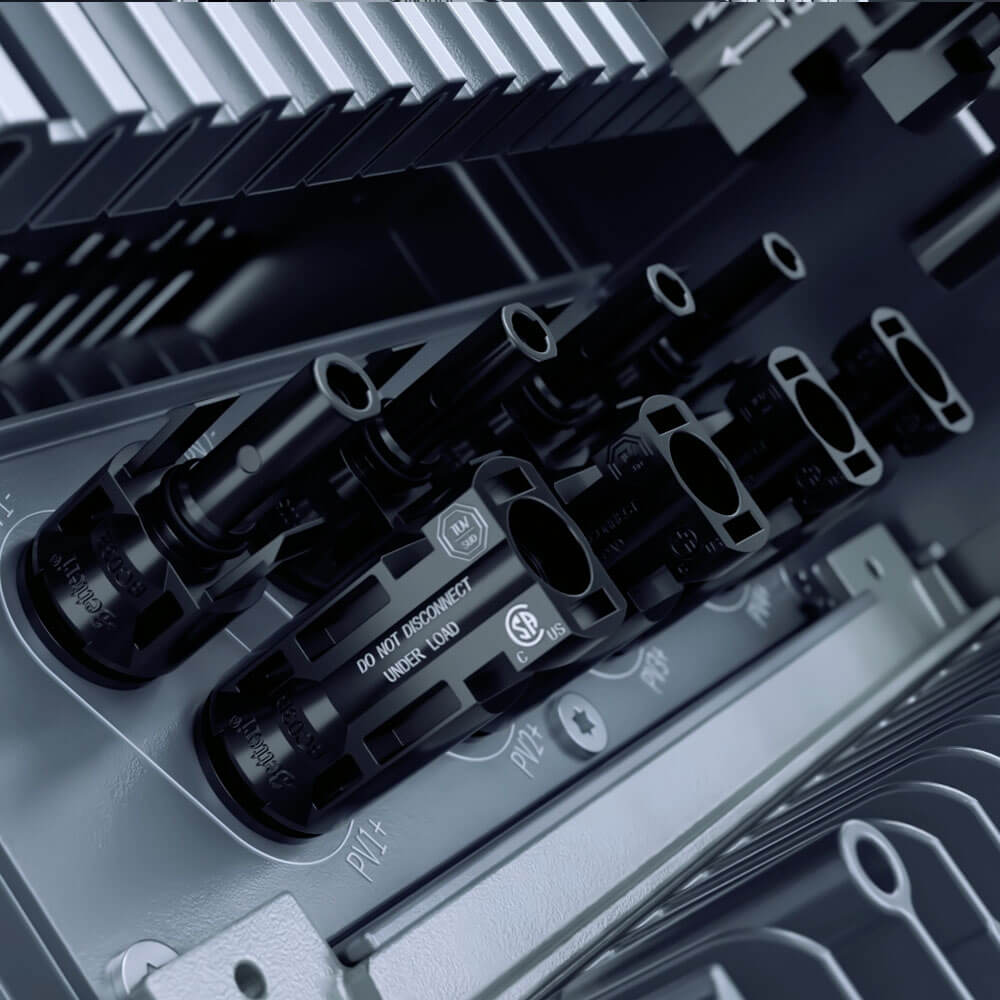

HiBattery 4020 X supports up to 4000W solar input through four independent MPPTs, allowing each PV string to operate at peak efficiency. Whether your panels face east, west, south, or experience partial shading, the system intelligently optimizes power generation to maximize self-consumption and reduce grid dependence.
HiBattery 4020 X
Exceptional Battery Longevity
Built with automotive-grade LiFePO4 cells, the system offers 8,000+ charge cycles and a 15+ year lifespan, delivering exceptional durability and stable, consistent performance over time. Its long service life helps reduce replacement costs and ensures a strong return on investment, making it a reliable choice for long-term energy storage.

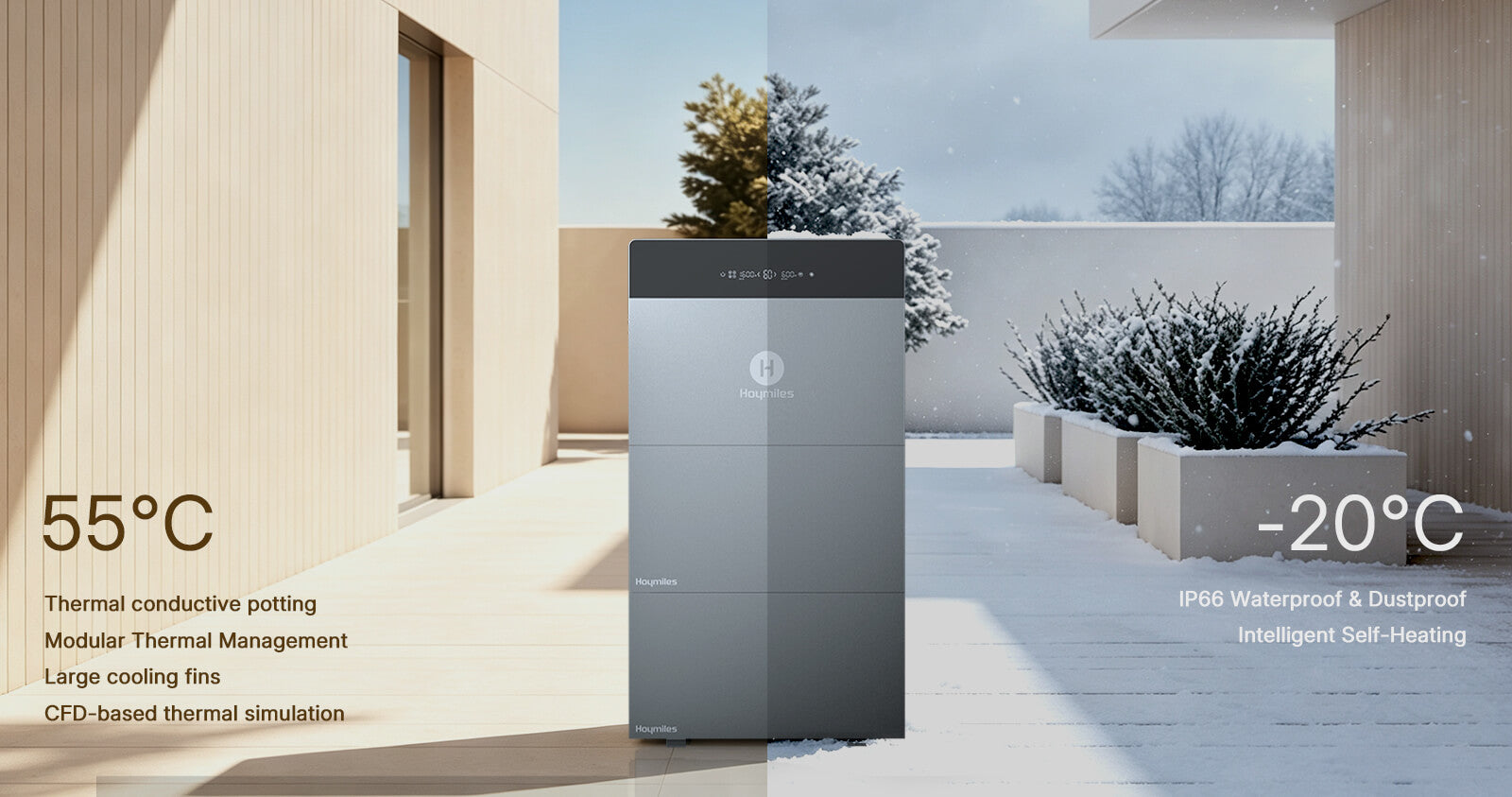

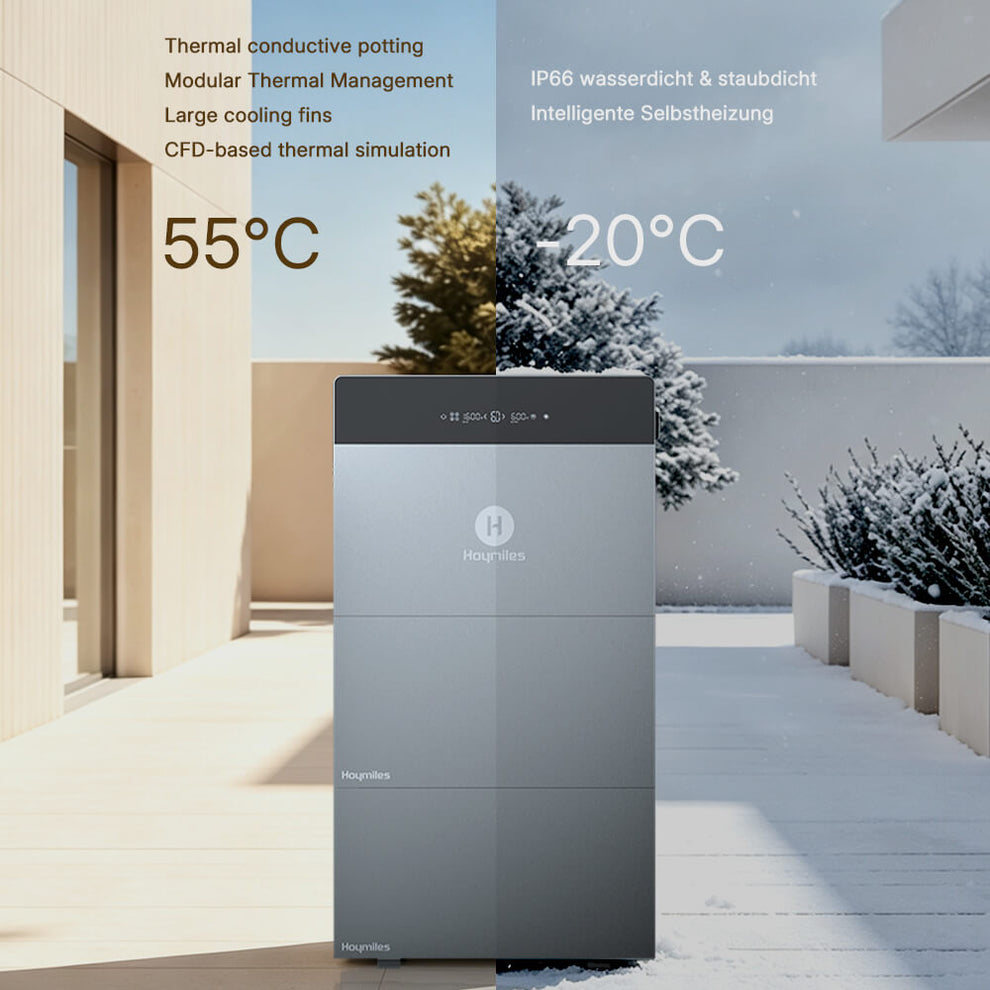

Stable Output in Any Environment

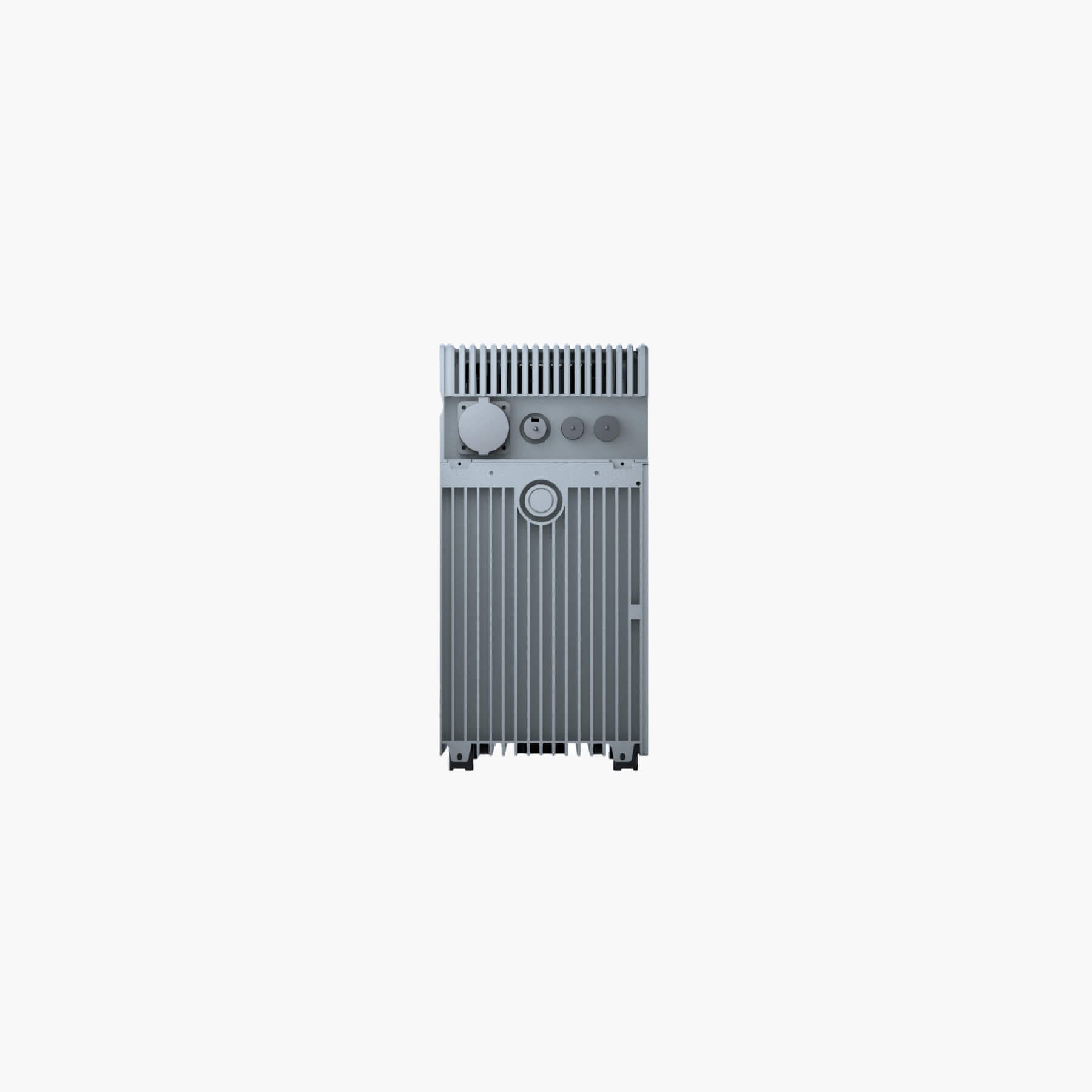

HiBattery 4020 X ensures reliable performance with IP66 protection. In summer, thermal conductive potting, large cooling fins, and CFD-optimized design improve heat dissipation with optional fan cooling. In winter, below 0°C, self-heating activates automatically to maintain optimal battery conditions and stable operation from -20°C to 55°C year-round.
Set Up With No Worry
Plug-and-Play Installation
The HiBattery 4020 X features a plug-and-play design that connects directly to PV modules, eliminating the need for complex wiring or additional equipment. With a streamlined installation process, you can get your solar energy storage system up and running quickly, saving both time and installation costs.
installation fee

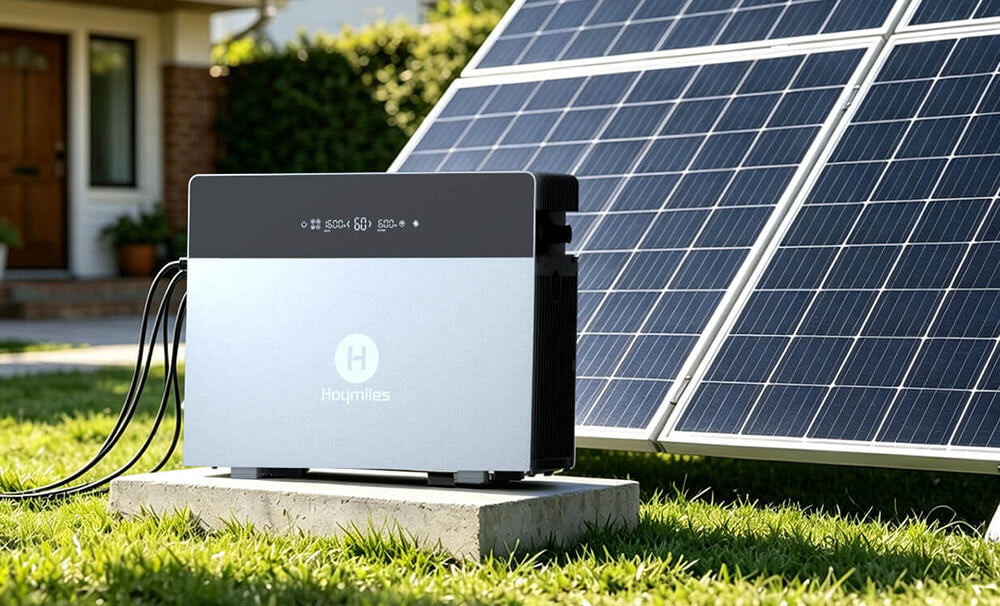

100% Compatibility

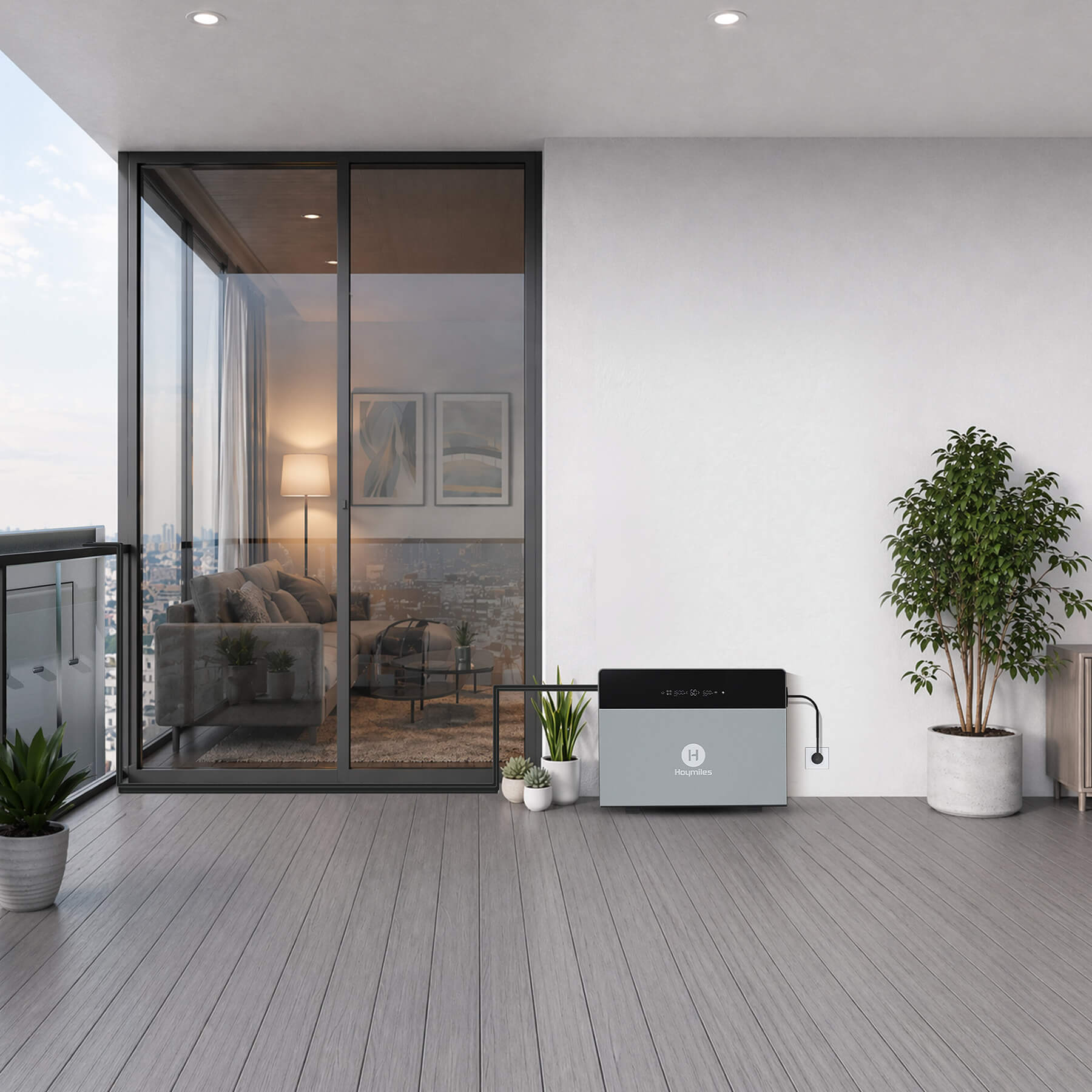

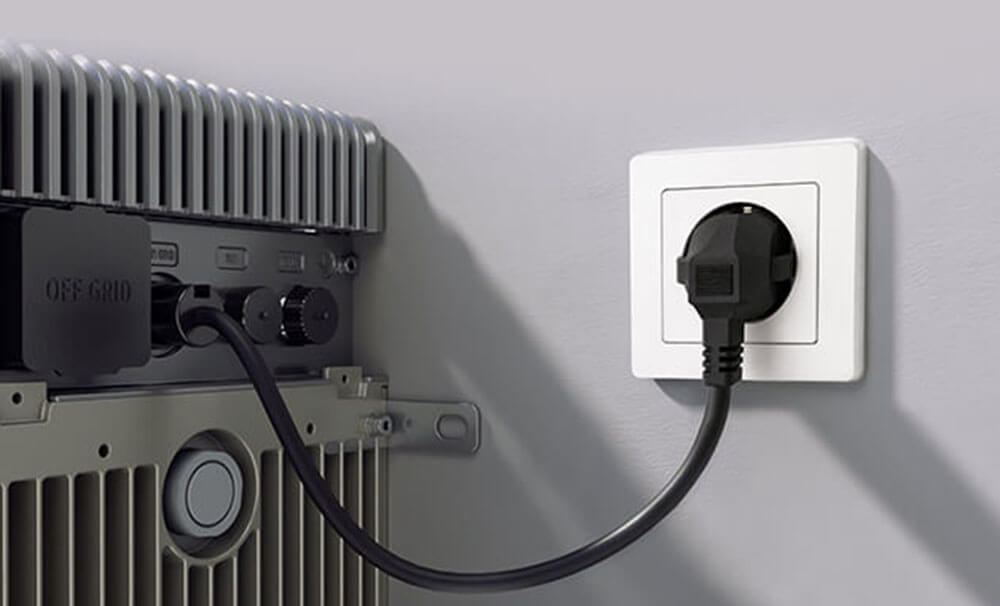

Designed for maximum flexibility, the HiBattery 4020 X can be plugged into any standard household socket and installed wherever power is needed. It also connects directly to virtually all mainstream solar panels, making it easy to integrate into both new and existing solar setups without complicated modifications.
compatible with solar systems
Installation Support Service
We provide professional support to ensure a smooth installation and seamless user experience. Our expert team is available via email, online chat, and phone to guide you step by step—from setup to everyday use—helping you get the most out of your system with confidence. Have any questions?
support service
More About Our Product
| Specification | Details |
|---|---|
| Battery Capacity | 4.02kWh |
| PV input power | 1000W × 4 |
| On-Grid Port | Max Input Power | 2500W |
| On-Grid Port | Max Output Power | 800W (Plug-in) / 2500W (Hardwired) |
| On-Grid Port | Rated output power | 800W |
| Off-Grid Port | Max Input Power | 2500W |
| Off-Grid Port | Max Output Power | 2500W |
| Max Charge and Discharge Power | 2000W |
| Operation Voltage Range | 16-60V DC |
| Max PV Input Current | 32A x 4 |
| Battery Type | LiFePO4 |
| Life Cycles | ≥8000@70% SOH |
| Operating Temperature | -20 to 55℃ |
| Weight | 42kg |
| Dimensions | 520 × 384 × 199mm |
| Warranty | 10 years |
| Ingress protection | IP66 |
| Supported communication interface | Bluetooth/2.4 GHz Wi-Fi |
| Noise | <20 dB |
4020 X
HiBattery 4020 X
4020 X Toolkit

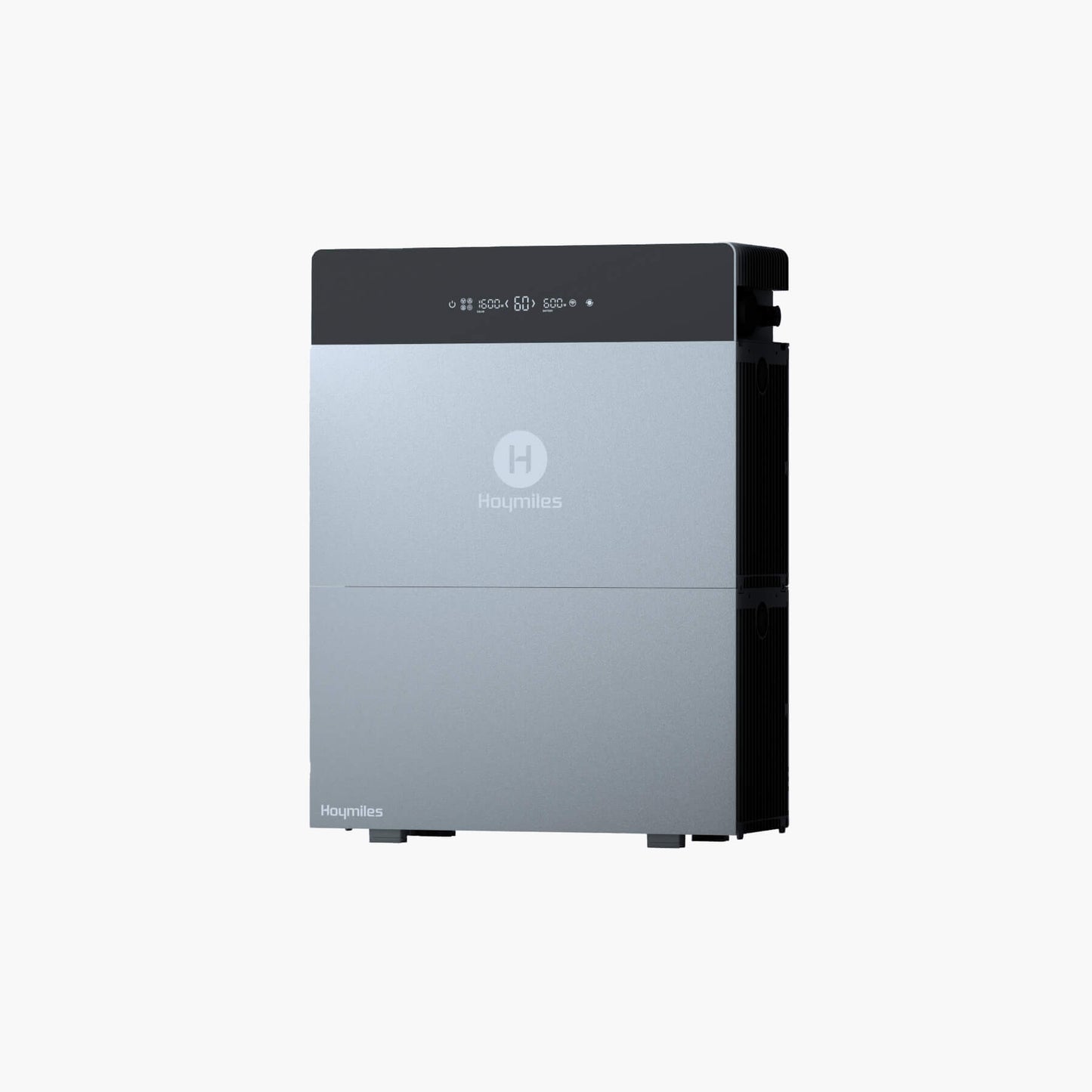

4020 X + 1 Battery Module(8.04kWh)
HiBattery 4020 X
Battery *1
4020 X Toolkit
Battery Toolkit
4020 X + 2 Battery Module(12.06kWh)
HiBattery 4020 X
Battery *2
4020 X Toolkit
Battery Toolkit
Free-HMeter-CT-T120-RW *1
Free-Cable(5m) *1

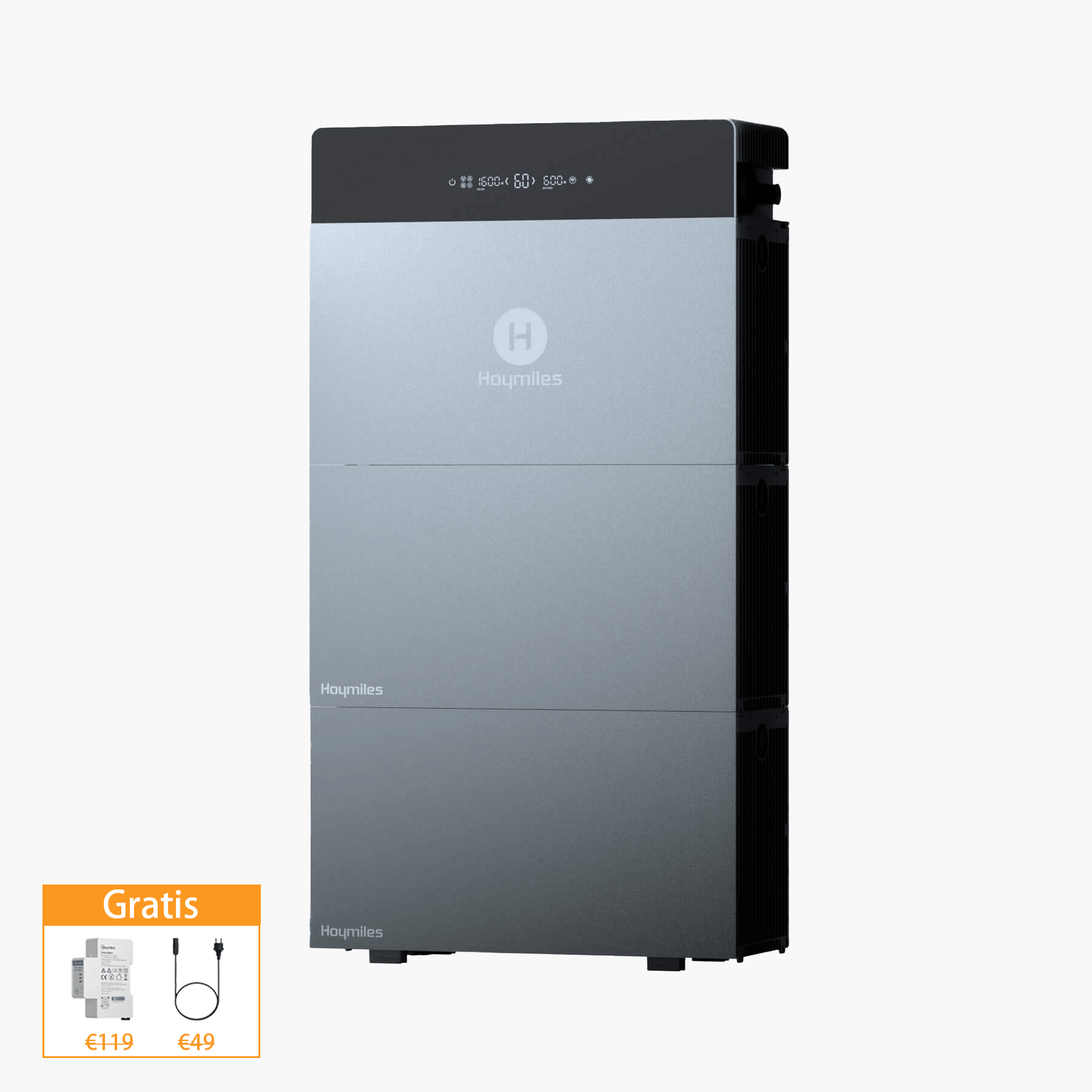

4020 X + 3 Battery Module(16.08kWh)
HiBattery 4020 X
Battery *3
4020 X Toolkit
Battery Toolkit
Free-HMeter-CT-T120-RW *1
Free-Cable(5m) *1
Frequently Asked Questions
4020 X or 4020 AC, which is right for me?
The HiBattery 4020 X works with all solar panel systems, while the 4020 AC is designed for inverter-based setups. Choose 4020 X for direct PV connection. Choose 4020 AC if you already have an inverter system.
Is professional installation required, or can I set it up myself?
No professional installation is required. The HiBattery 4020 X and 4020 AC feature a simple plug-and-play design, allowing you to set it up yourself in just a few easy steps.
How many batteries can I connect together for more storage?
The HiBattery X and HiBattery AC both support expandable storage. You can connect up to 3 additional battery expansion modules, increasing the total capacity to a maximum of 16.08kWh.
How does Hoymiles build an ultimate safe energy storage system?
Hoymiles HiBattery delivers ultimate safety through a smart BMS, integrated fire safety system, pack-level DC/DC balancing, and IP66-rated protection for reliable operation in all environments.
How is the battery monitored (app, LCD, smart home integration)?
HiBattery 4020 X/AC can be monitored through the Hoymiles S-Miles App, which allows you to track real-time energy charging, usage, battery status, and system performance from your smartphone. It also supports smart home integration with platforms like Shelly and Everhome.
Who manufactures the battery, and do they have a good track record?
HiBattery 4020 is designed and manufactured in Hoymiles self-owned production facilities. Each battery is produced in-house under strict quality control standards to ensure consistent performance, safety, and long-term reliability.
Why are there two output power ratings (800 W and 2500 W)?
The available AC output depends on the installation method.
800W – Plug-and-Play installation via a standard household socket, subject to local regulations.
2500W – Professional installation via the household distribution board by a qualified electrician, where permitted by local regulations.
For professional installations that meet local requirements, the maximum output power can be increased to 2500 W in the S-Miles Home App.
