HiFlow 800 Plug in Microinverter
HiFlow 800 Plug in Microinverter
0% VAT in Germany only. For other countries, please check VAT Rate by Country
Features at a Glance
Features at a Glance
Plug-and-Play Installation
Up to 97.0% Conversion Efficiency
Wide MPPT Voltage Range
IP67 Weatherproof Protection
12-Year Warranty
Smart Monitoring
Why Buy from Hoymiles.com?
Why Buy from Hoymiles.com?
Direct from Hoymiles
Official Warranty Standards
Free shipping in Germany (3-7 days)
30-day money back
Secure and easy payment
Lifetime customer service
Couldn't load pickup availability
More About Our Product
| Specification | Details |
|---|---|
| Input | MPPT Channels | 1 MPPT(max. 2 PV modules) |
| Input | Commonly used module power | 320 to 520+W |
| Input | Max input voltage | 100V |
| Input | MPPT Voltage Range | 16–96V |
| Input | Min./Max. start voltage | 22/96V |
| Input | Max input current | 16A |
| Input | Max input short circuit current | 25A |
| Output | Rated output power | 800VA |
| Output | Rated output current | 3.48A |
| Output | Frequency Range | 50/45 to 55Hz |
| Output | Peak efficiency | 97% |
| Output | Operating Temperature | -40 to +65℃ |
| Weight | 2.1kg |
| Dimensions | 213 × 182.5 × 36.5mm |
| Warranty | 12 years |
| Protection Rating | IP67 |
Frequently Asked Questions
Can I install it on a balcony solar system?

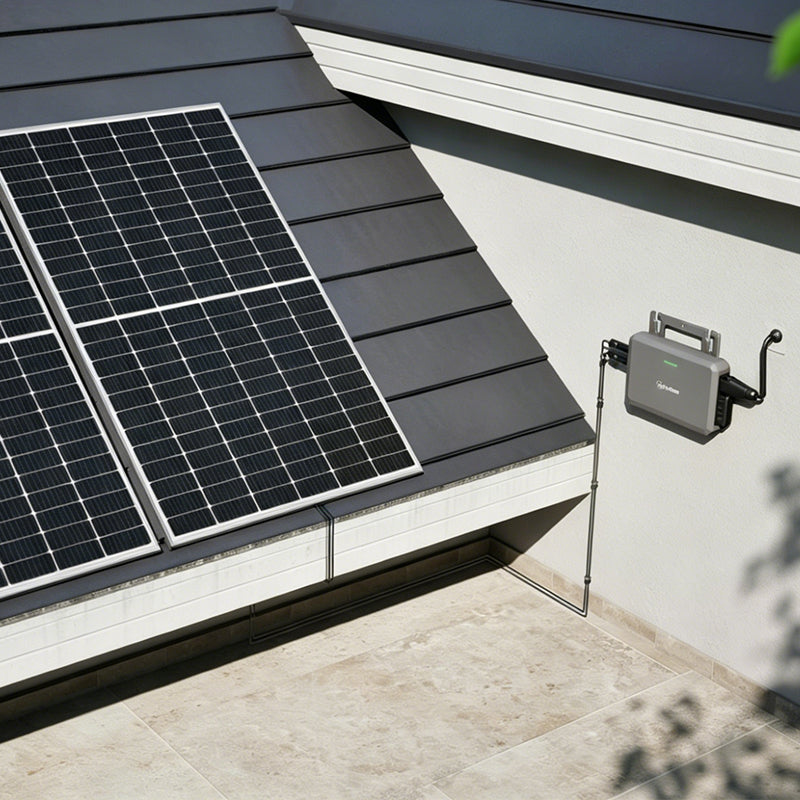

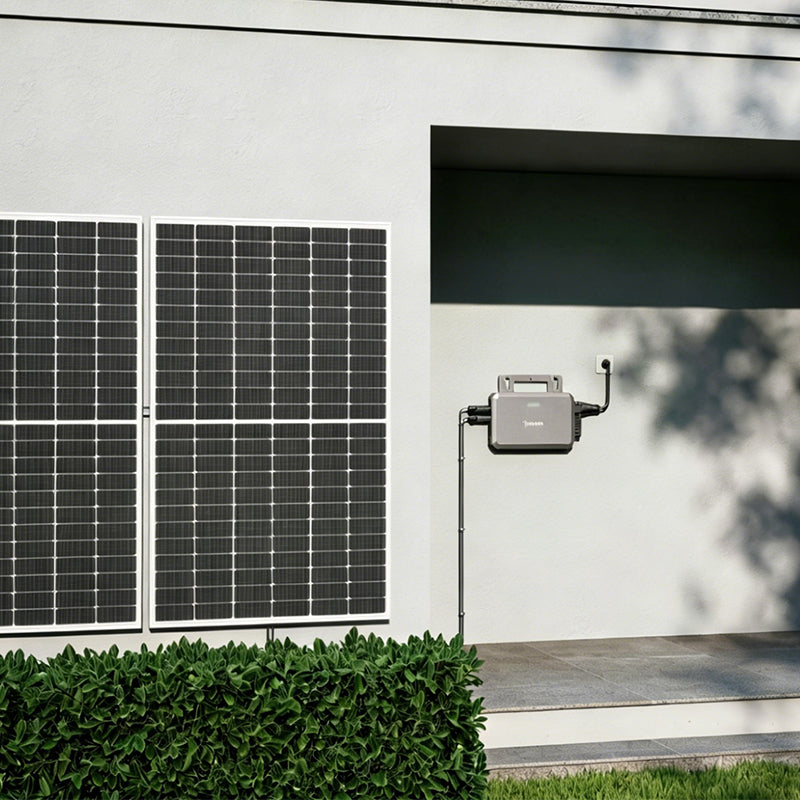

Yes. The HiFlow series is specifically designed for balcony PV systems, rooftops, gardens, terraces, carports, and other residential applications.
How many solar panels can I connect?
HiFlow 800: Up to 2 PV modules (parallel connection)
HiFlow 800/1000 Pro: Up to 2 PV modules
HiFlow 1600/2000 Pro: Up to 4 PV modules
Each MPPT tracks its connected module(s) independently for maximum energy harvest.
Is professional installation required?
Hoymiles recommends installation by a qualified electrician to ensure compliance with local electrical regulations and safety standards.
Can I use third-party solar panels?
Yes, third-party solar panels are compatible if they meet the PV input specifications and use MC4 connectors. The input range per PV port is:Operating Voltage: 16-60VOperating Current: ≤16A
Can it generate power in low-light conditions?
Yes. HiFlow/HiFlow Pro features a low startup voltage and is designed to begin generating power earlier in the morning and continue later into the evening.
Is elevated temperature during operation normal?
A moderate temperature increase during operation is normal and will not impact product longevity. The system has undergone rigorous testing, and the casing is designed for rapid heat dissipation (natural convection). For safety and performance, install the unit in a well-ventilated, non-sun-exposed area, away from children/pets.
