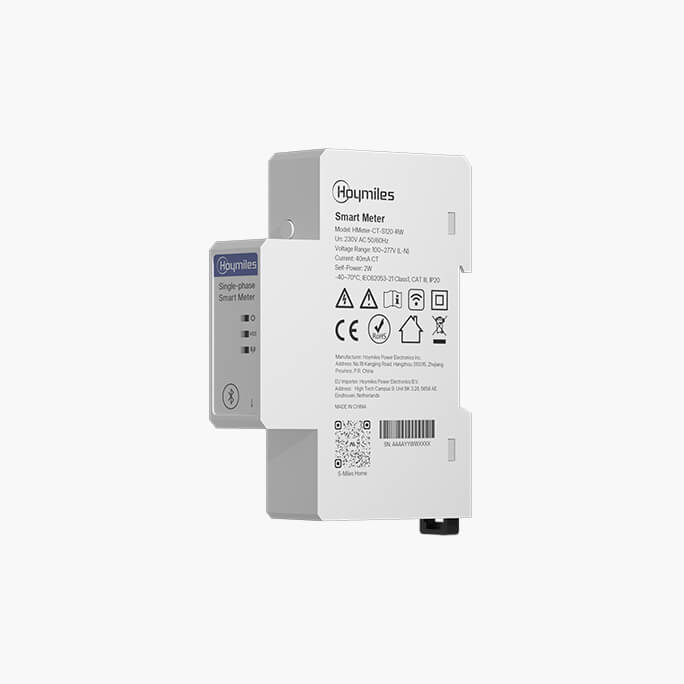

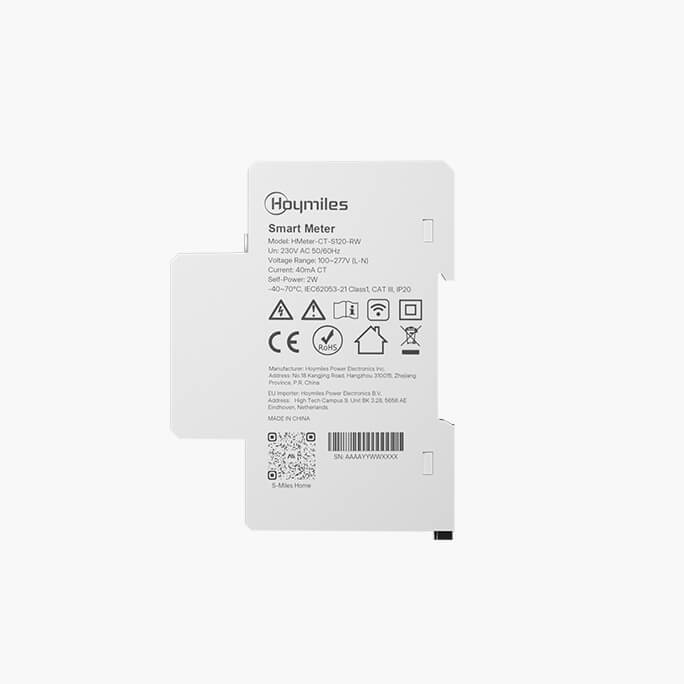

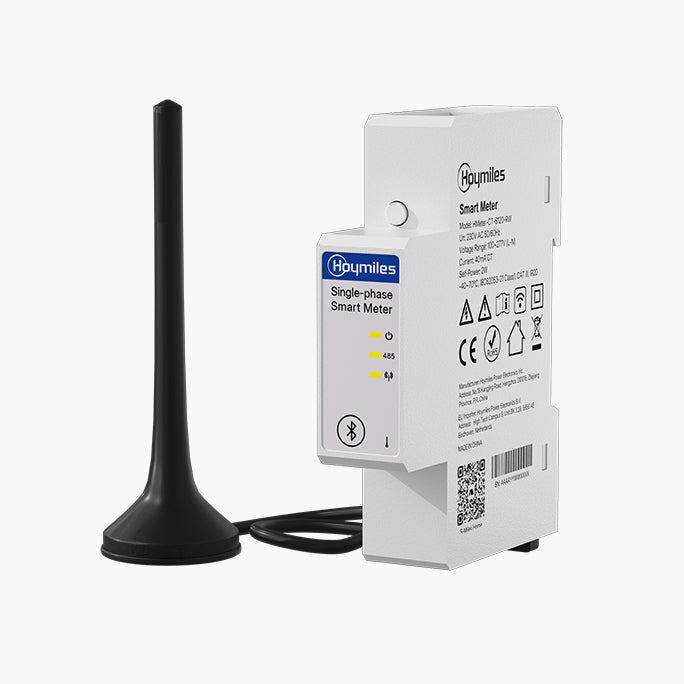

Hoymiles Smart Meter(Single phase)
Hoymiles Smart Meter(Single phase)
Get Extra 20% Off with Code: SM20
0% VAT in Germany only. For other countries, please check VAT Rate by Country
Only Compatible with Hoymiles HiBattery, HiFlow, and HiFlow Pro Series.
Features at a Glance
Features at a Glance
Simple CT Connection
Zero Export Control
Space-Saving Design
WiFi & RS-485 Connectivity
DIN Rail Installation
High Accuracy Monitoring
Up to 120A Current Measurement
Our Service
Our Service
High Warranty Standards
Free shipping in Germany (3-7 days)
Secure and easy payment
Lifetime customer service
Couldn't load pickup availability

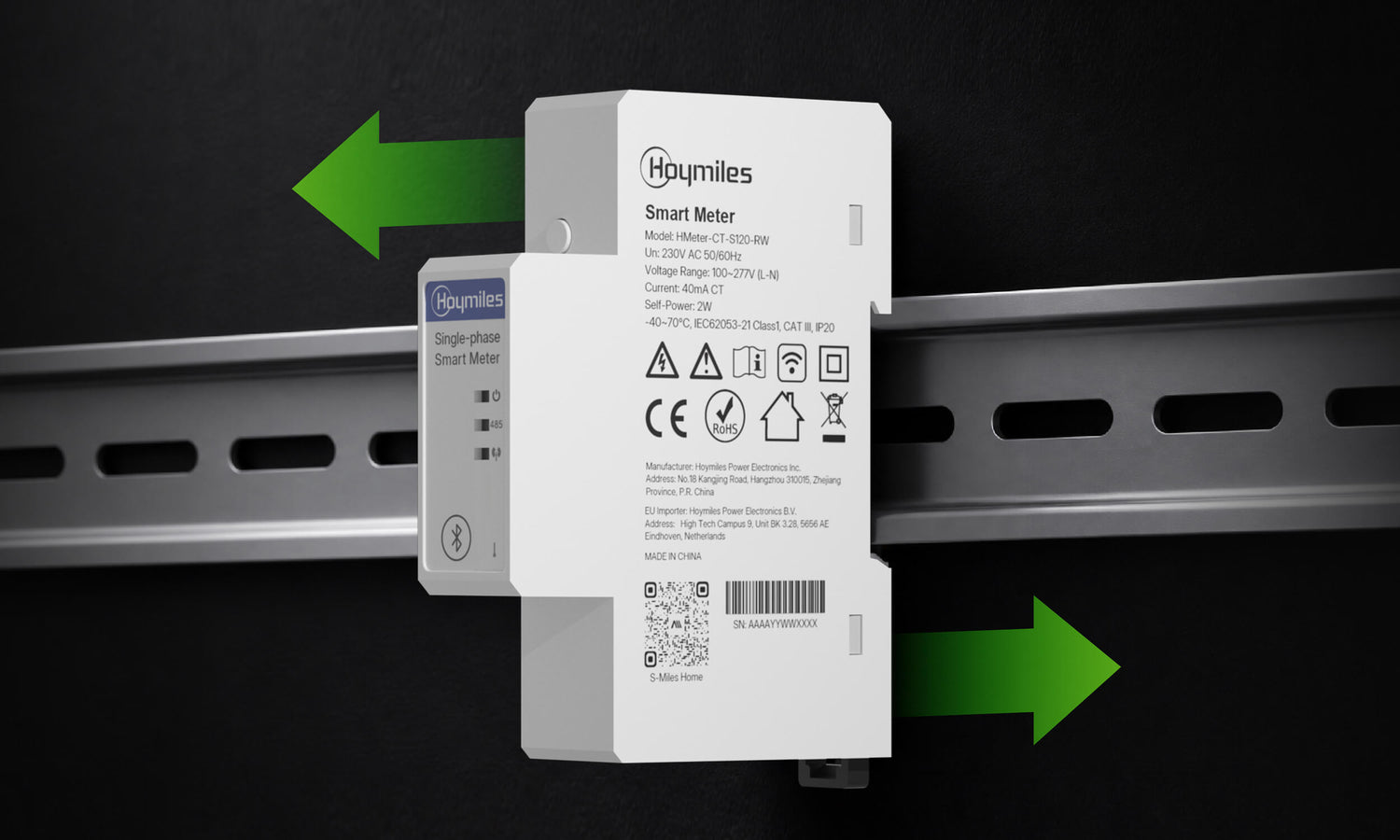

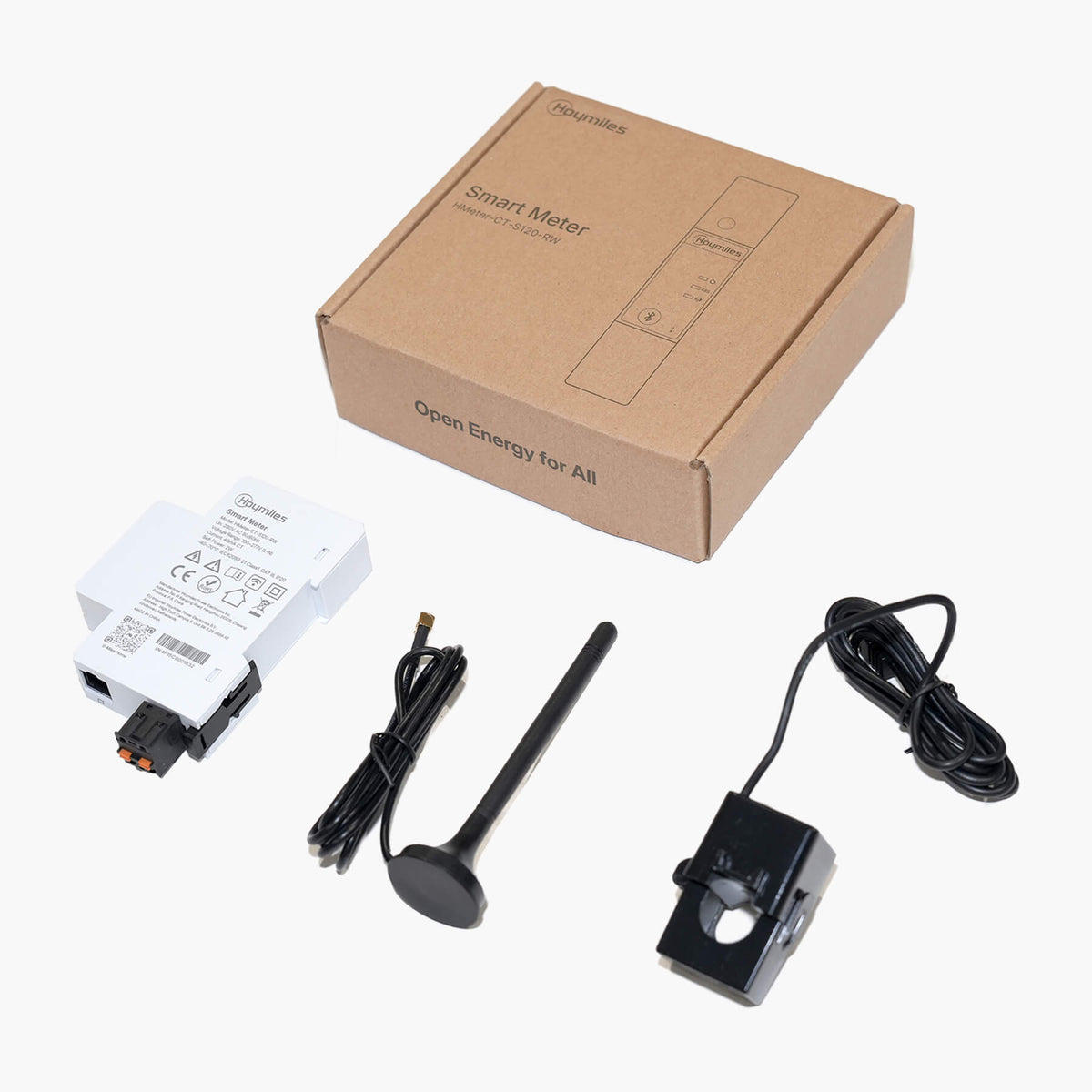

Quick Installation
Easy DIN-rail mounting and simple CT connection for quick, hassle-free installation and wiring.

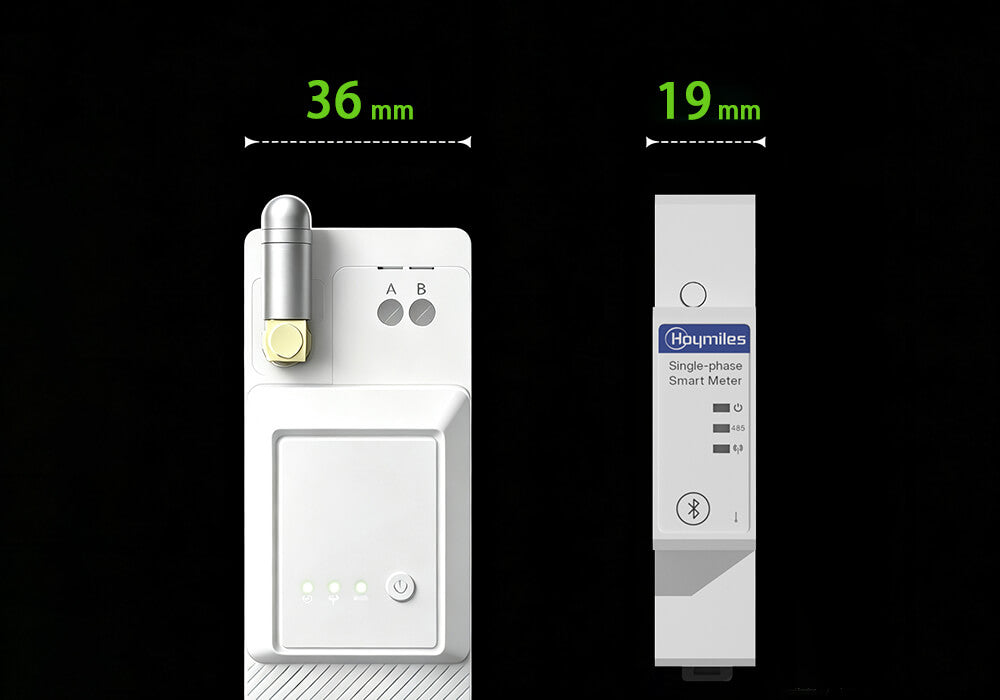

Compact Design
At just 19 mm high, the Smart Meter takes up less space than comparable products, fitting easily even where every millimeter counts.

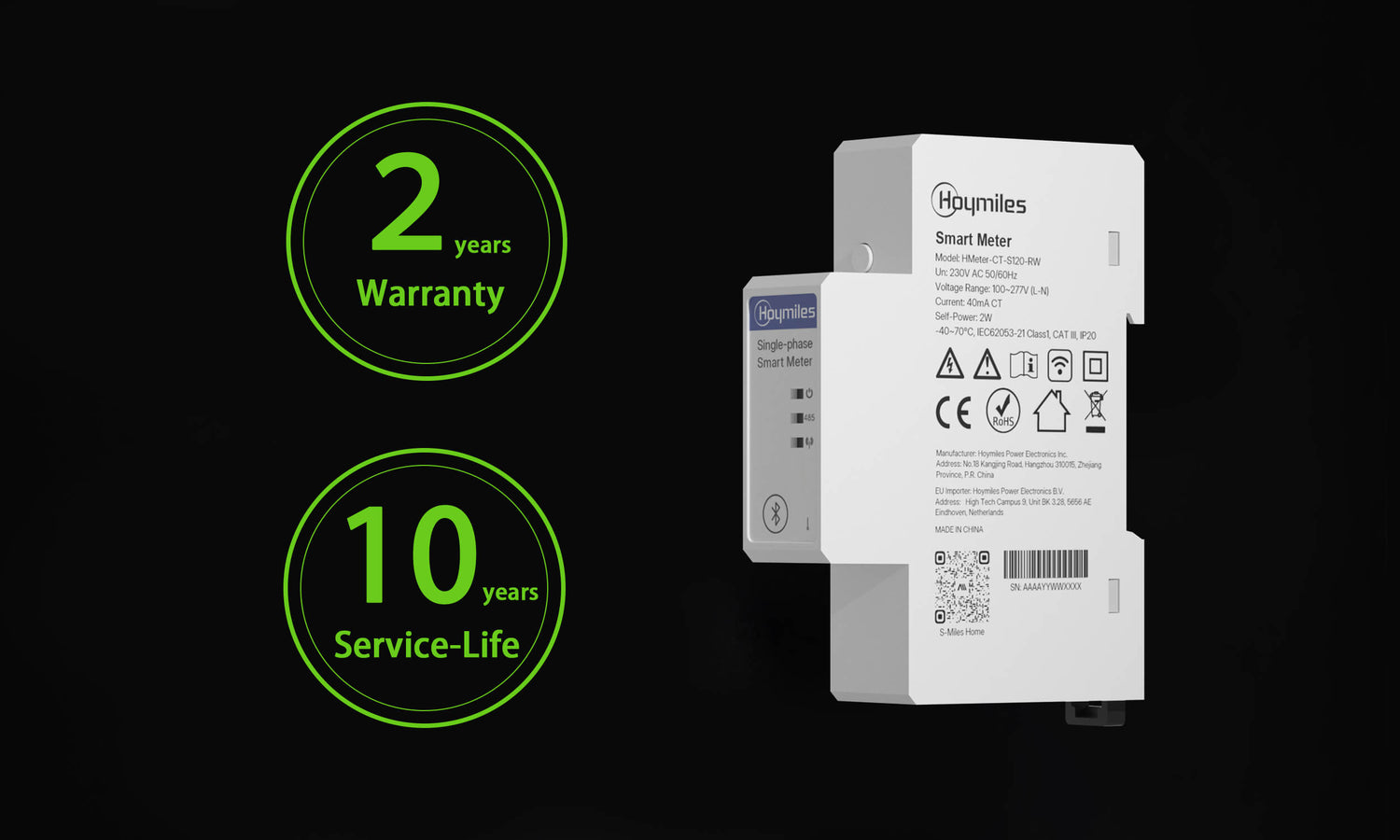

2-Year Warranty, 10-Year Life
Enjoy a 2-year warranty from Hoymiles and a 10-year service life for reliable, long-lasting performance.

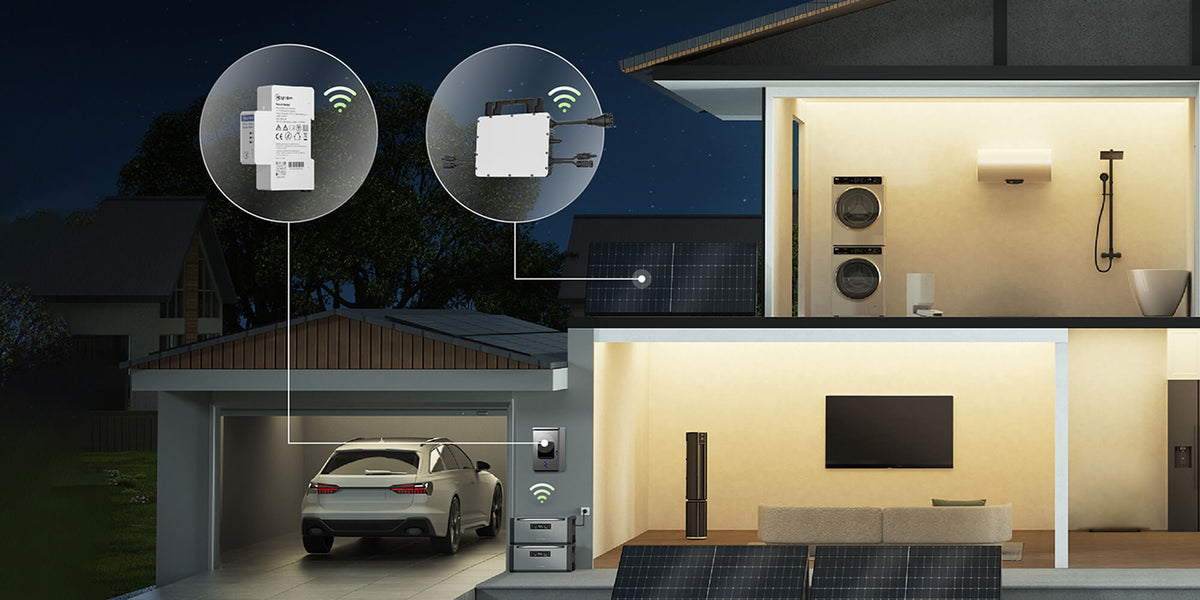

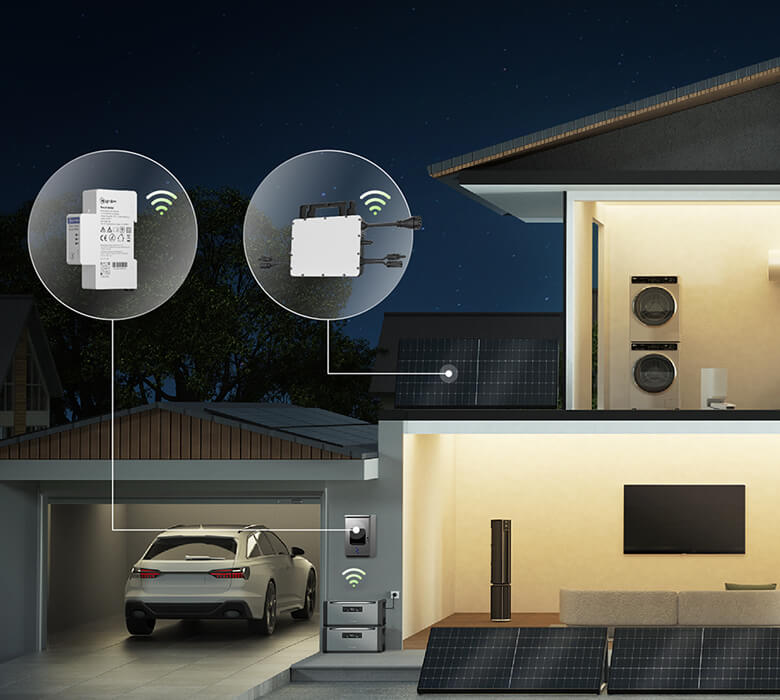

Smart Energy Monitoring for Your Home

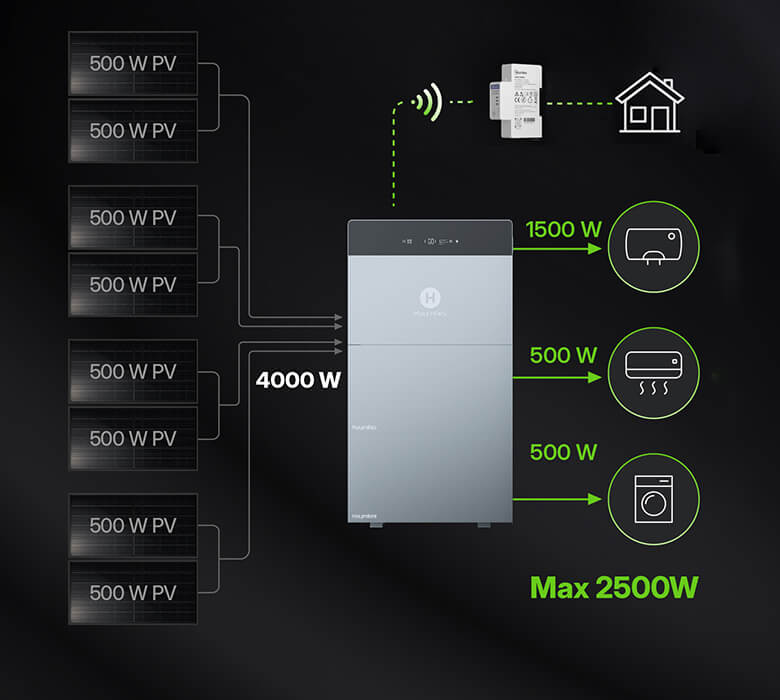

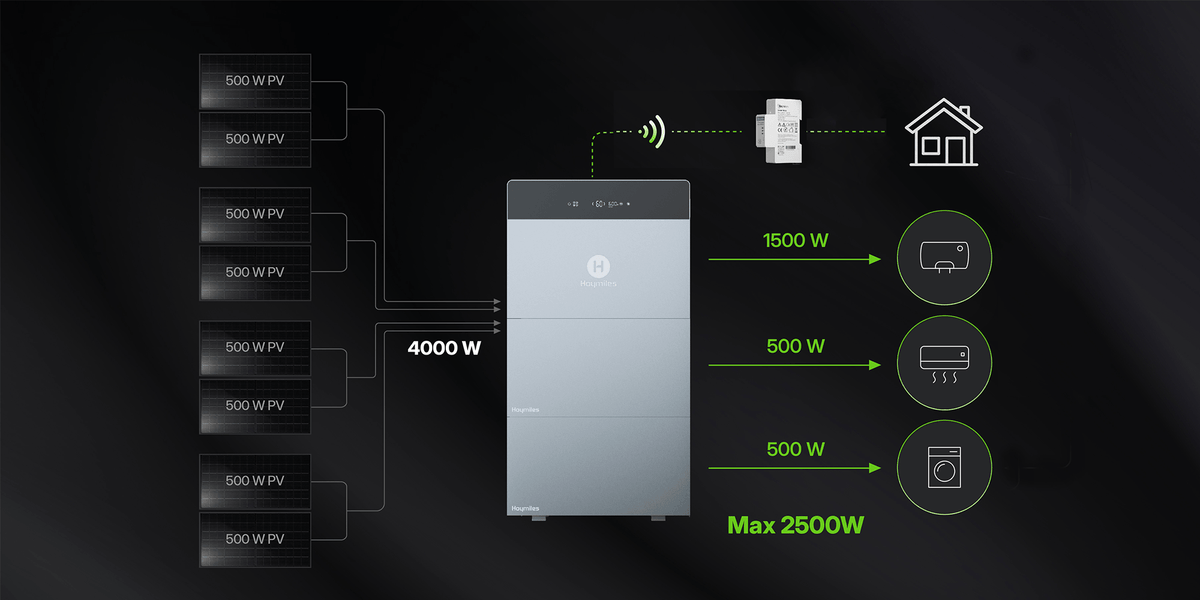

The Hoymiles Smart Meter monitors your home's energy consumption and solar power generation in real time, working seamlessly with the Hoymiles energy system to help identify energy surpluses, maximize solar self-consumption, and make smarter use of your energy.
Know Your Energy. Control Your Power.
Accurately monitor power flow in real time and optimize your home's energy use. With Wi-Fi connectivity and zero-export control, the Hoymiles Smart Meter makes energy management smarter and more efficient.
More About Our Product
| Specification | Details |
|---|---|
| Installation Method | DIN rail installation |
| Meter Phases | Single-phase |
| Weight | 71g |
| Dimensions | 19 × 94.5 × 68.5 mm |
| Input voltage range | 100 to 277 V |
| Frequency | 50/60 Hz |
| Current range | 0 to 120 A |
| Power consumption | <2W |
| Supported communication interface | RS-485(Not supported by HiBattery/Hiflow series), Wi-Fi |
| Operating Temperature | -40°C to +70°C |
| Operating Humidity | ≤95% RH |
| Height of the Altitude | ≤2000 m |
| Protection Rating | IP20 |
Frequently Asked Questions
What connection types are supported?
The HiBattery、HiFlow Pro and HiFlow series currently support Wi-Fi connection only.
For other product models, please contact our customer service team to confirm the supported connection types.
Where is the Smart Meter installed?
The Smart Meter is designed for DIN-35 rail mounting and fits standard electrical cabinets. Its plug-and-play CT connection enables quick and easy installation.
Is professional installation recommended?
Yes. Installation should be carried out by a qualified electrician according to local electrical regulations.
Which Hoymiles products is the Smart Meter compatible with?
Compatible with selected Hoymiles HiBattery, HiFlow and HiFlow Pro series products. Please refer to the product specifications or contact customer support for compatibility details.
Is this product compatible with third-party products?
As of now, this product is only compatible with Hoymiles products.
Can I monitor my energy usage in real time?
Yes. When connected to a compatible Hoymiles system, the Smart Meter provides real-time energy data in the S-Miles Home App.
